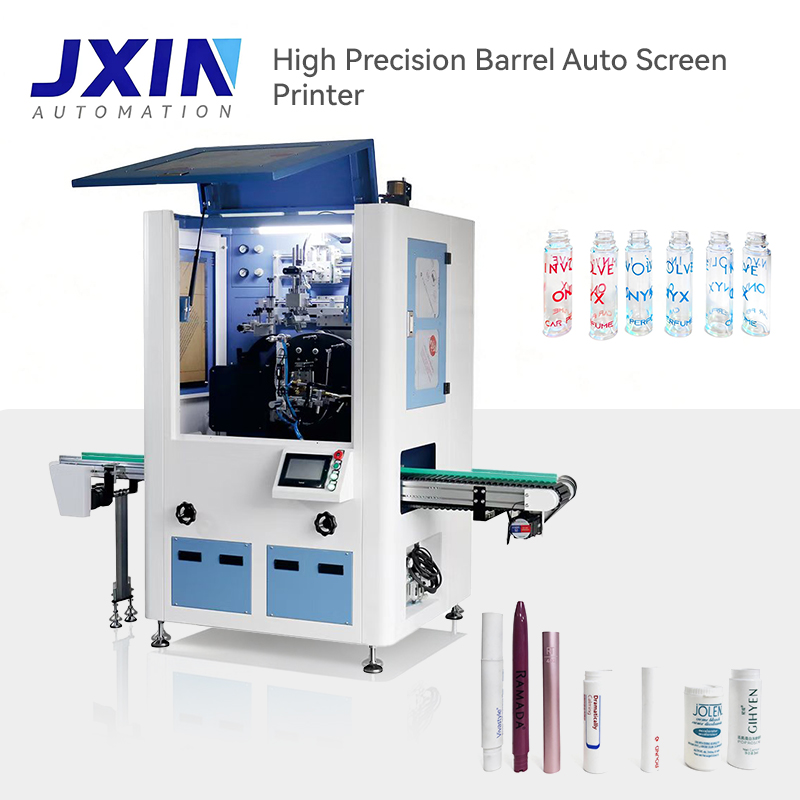

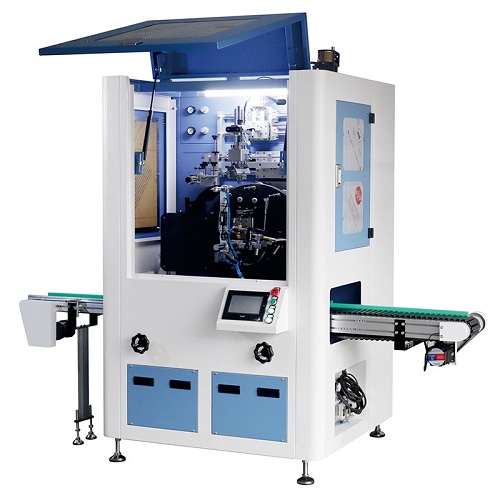

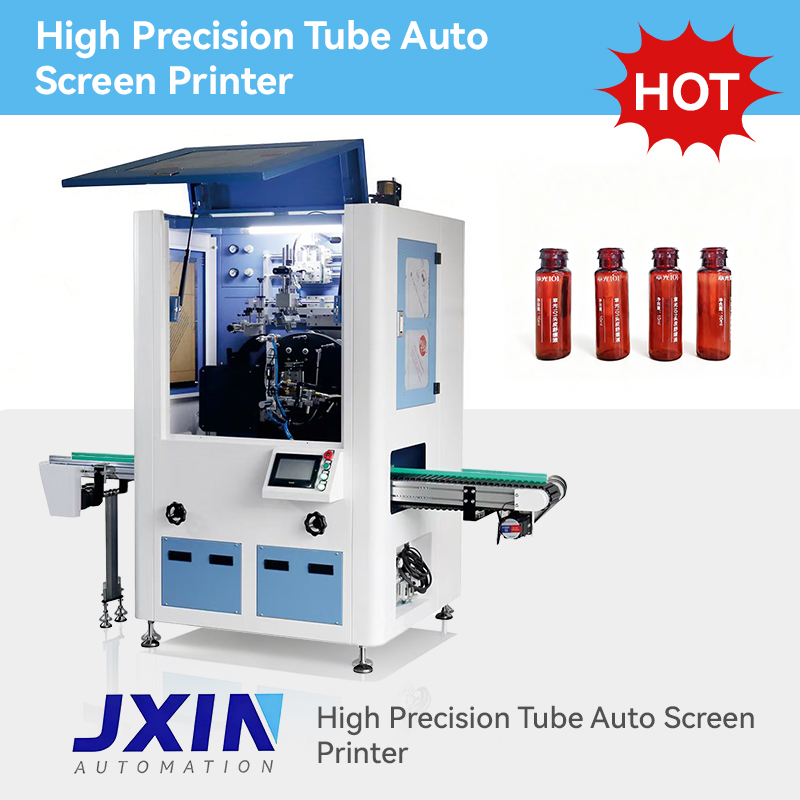

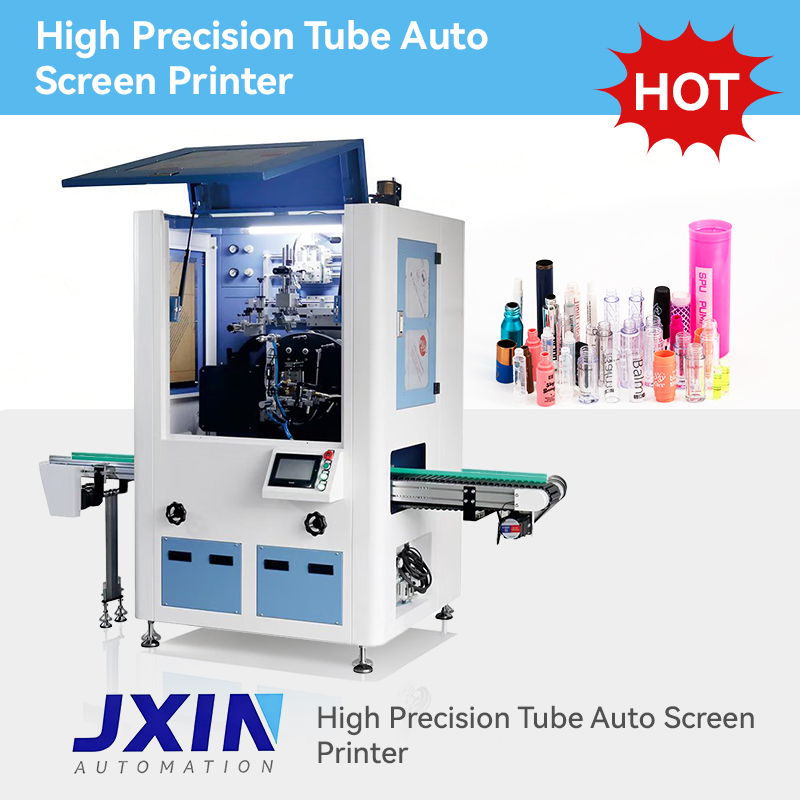

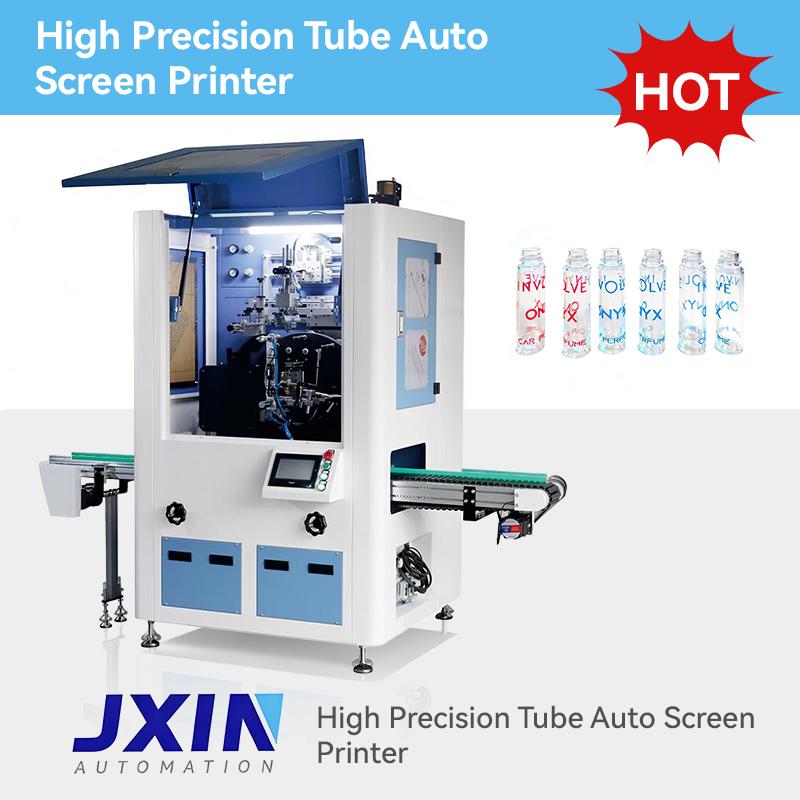

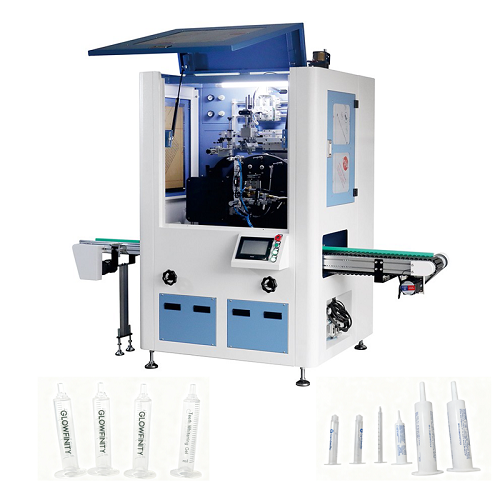

Automatic Barrel Screen Printing Machine-P12G

Product Item : JX-P12G
Category： High Speed Screen Printing Machine
Printing Speed : 3600 times per hour
Printing Area: 150mm*300mm Power : 220 2kw
Volt: 220V Air Supply: 5—7BAR
Maximum Workpiece Height：200MM Disk Diameter : 600MM Cutting Manipulator Stroke : 300MM Unloading Manipulator Mode: sucker or pneumatic finger.
Product description： screen printing machine for TUBE, bottle screen printing machine ,Automatic screen printer for plastic jar,tube screen printing machine
Order online

Features

Stable and reliable performance, with speed up to 3600 times per hour.

Automatic Picking-up,save more labor cost

Instant led uv curing without any scratch

Automatic off-unloading

Easy feeding by hand

Friendly to users

Suitable Products

Available for different kinds of round tube ,smaller bottle diameter within 25MM,length less than 120MM

Widely used on cosmetic tubes ,Centrifuge tube

Machine brief introduction

With unique mechanical structure design, the machine can print up to 3600 times per hour easily. Auto picking up to the fixture and automatic unloading can greatly reduce labor intensity of workers and improve production efficiency. Equipped with pre-press electrostatic dust removal system and sensor detection system, improves the quality of product printing and the flexibility of printing operations.It is a preffered option for printing of the cosmetic industry and other tube manufacturer.
