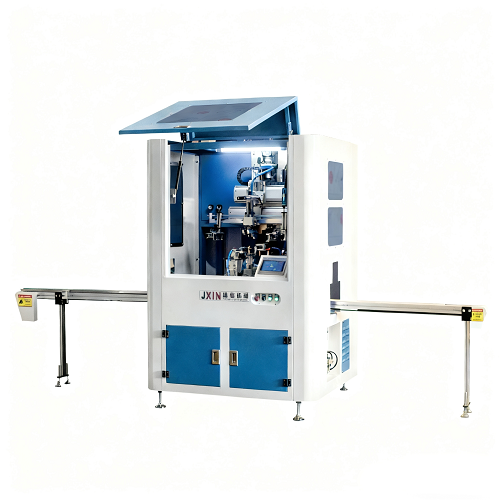

Full Automatic Screen Printing Machine for for Lotion Bottle-CNC-TK1
- Model CNC-TK1
- Category Auto Servo Screen Printer
- Printing Speed : 1500-2500pcs/H
- Printing Area: 90mm*210mm Power : 2kw
- Volt: 220V Air Supply: 5—7BAR
- Workstation: 1PCS
Features
Stable and reliable performance, with speed up to 2500 times per hour.
Manual Placing and easy bottle screen printing
Instant led uv curing without any scratch and improve the output.
Automatic off-unloading to belt after printing
Friendly to users
Suitable Products
Available for smaller round, oval, square glass or plastic bottles ,details as following:
BOTTLE SHAPE
PRINTING AREA(MM)
RUNNING SPEED(IMPRESSIONS/H)
Round Bottle
210*90
2500PCS
Square Bottle
60*60
1500-2000
Oval Bottle
80*60
2000-2500
Hexagon Bottle
80*80
1000-1500
Machine brief introduction
With 5-servo motor driven , the machine can be availabe for round, oval, square plastic and glass bottle, print up to 2200 times per hour easily. Manual tube/bottle placing and automatic pick-up, accurate screen printing, unloading can greatly reduce labor intensity of workers and improve production efficiency. Equipped with pre-press electrostatic dust removal system and sensor detection system, improves the quality of product printing and the flexibility of printing operations.It is a preffered option for printing of the cosmetic small size tube and bottle manufacturer.
