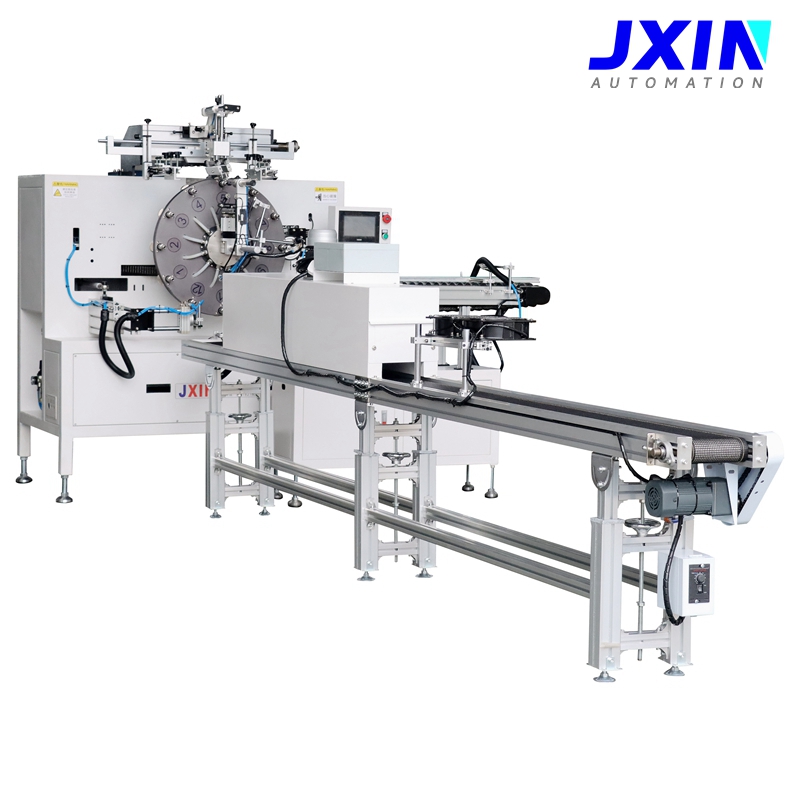

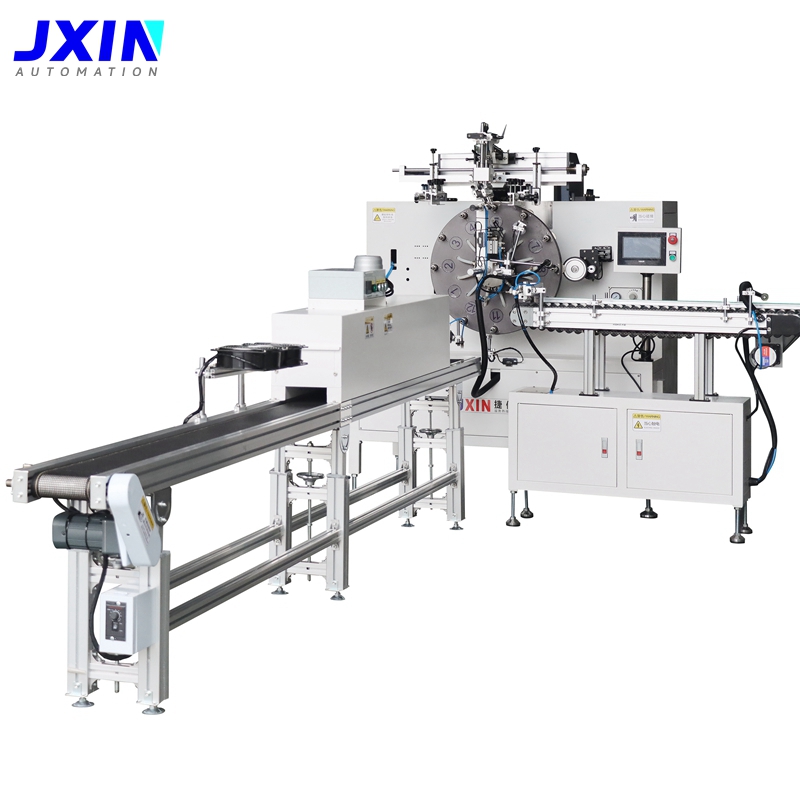

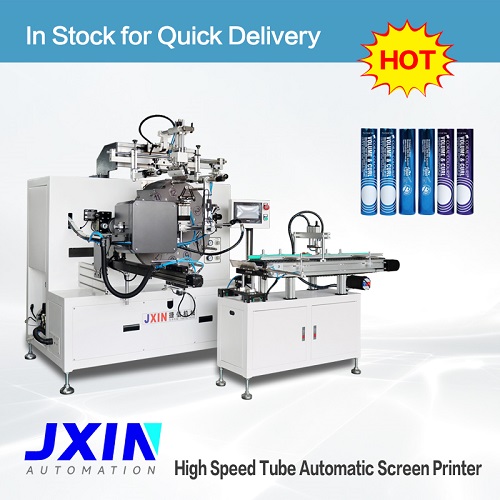

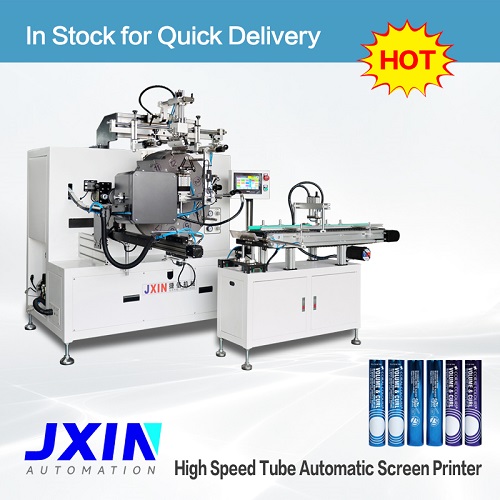

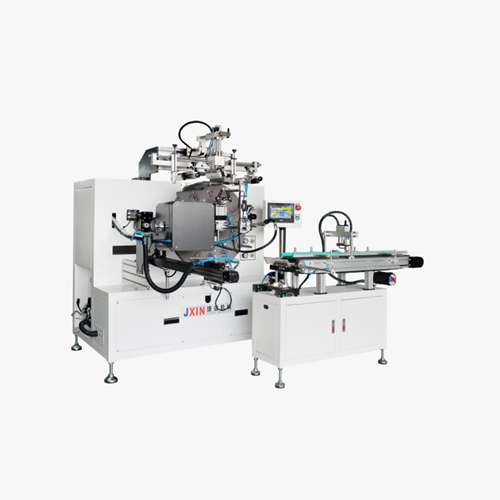

Automatic Screen Printing Machine for Tube Bottle with Orientation System
- Model JX-S12
- Category Cosmetic Tube Screen Printer
- Printing Speed : 3200PCS/H
- Printing Area: 150mm*300mm
- Air Supply: 5—7BAR Power Supply : 220 2kw
- Tube Diameter:25MM,Tube Height:150MM
Features
Stable and reliable performance, with speed up to 3200 times per hour.
Easy feeding on conveyor by hand
Automatic Tube Orientation System
Automatic Feeding
LED UV Instant Curing System
Automatic unloading
Servo+HMI Control System, Friendly to users
Suitable Products
Available for tube container and smaller bottle diameter less than 25MM, and height less than 150MM.
Widely used on cosmetic tube packing printing.
Machine brief introduction
With unique mechanical structure design, the machine can print up to 3200 times per hour easily. Machine with automatic feeding and unloading, greatly reducing labor intensity of workers and improve production efficiency. Equipped with pre-press electrostatic dust removal system and sensor detection system,automatic unloading and heat dryer, improves the quality of product printing and the flexibility of printing operations.It is a preffered option for printing of the food packing industry and plastic bottle manufacturer.
