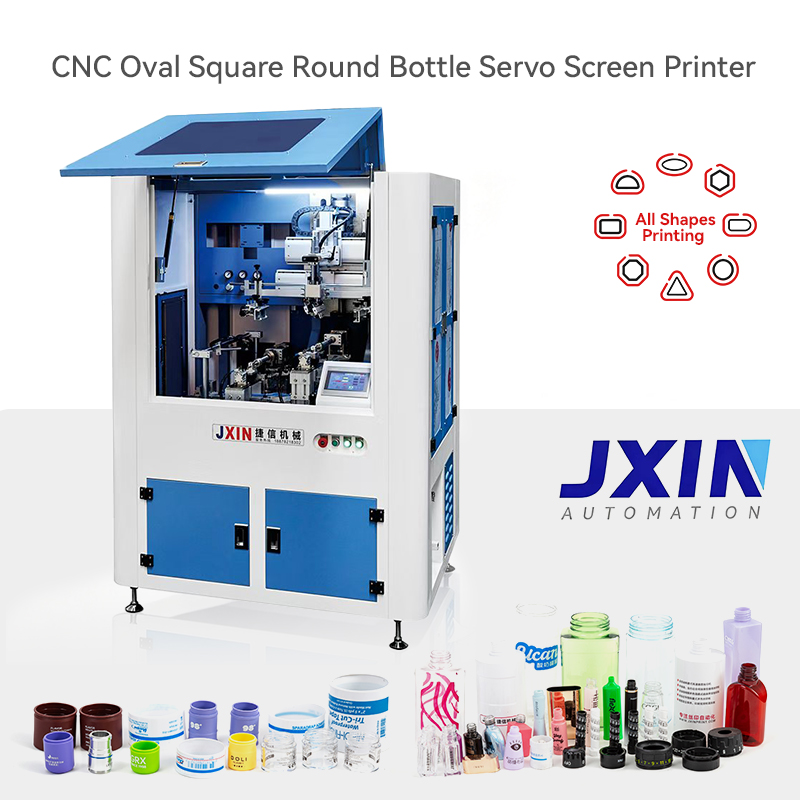

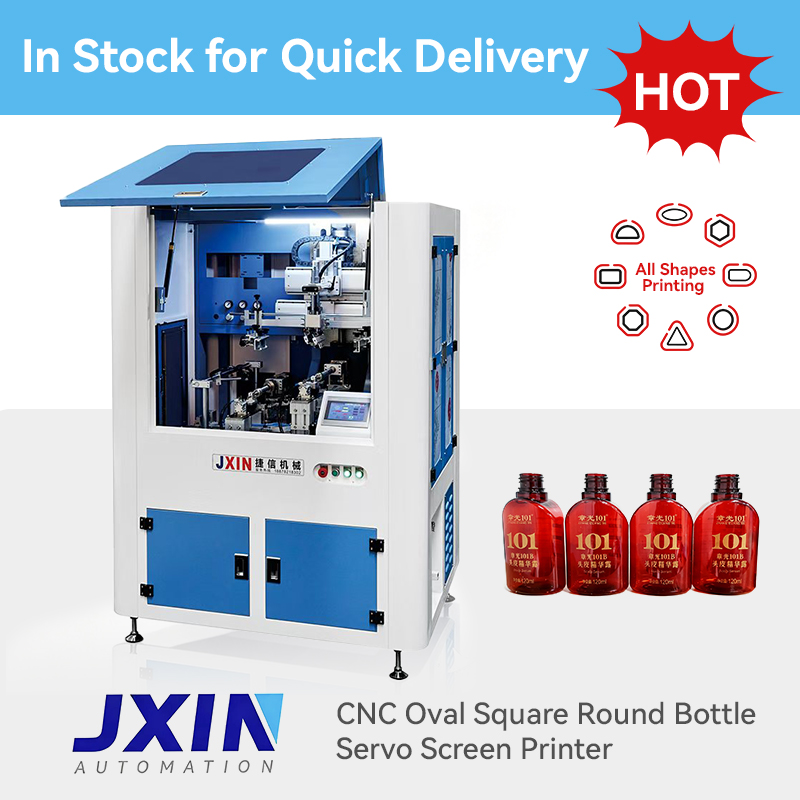

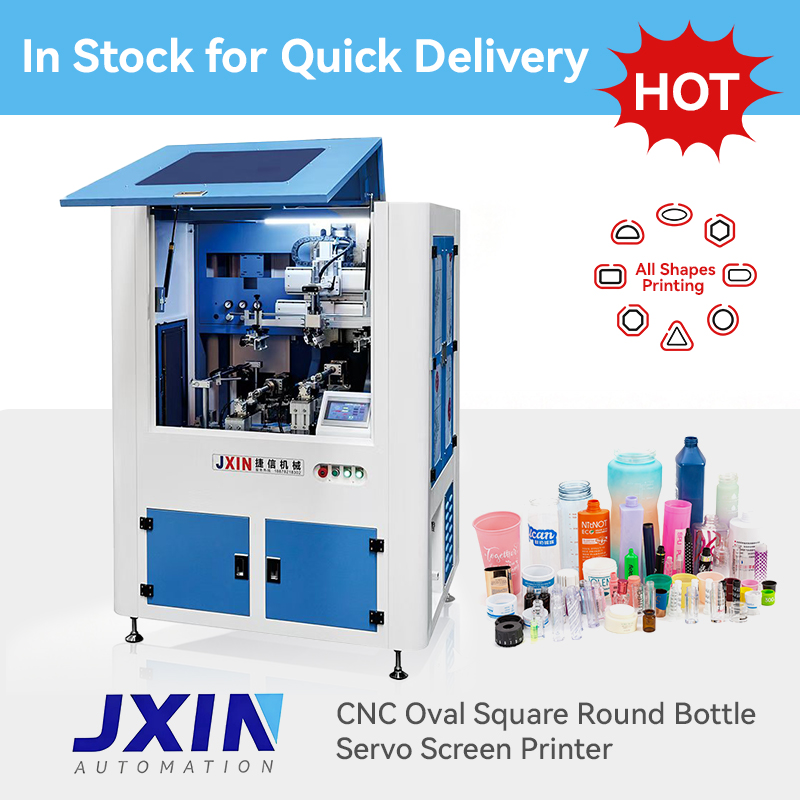

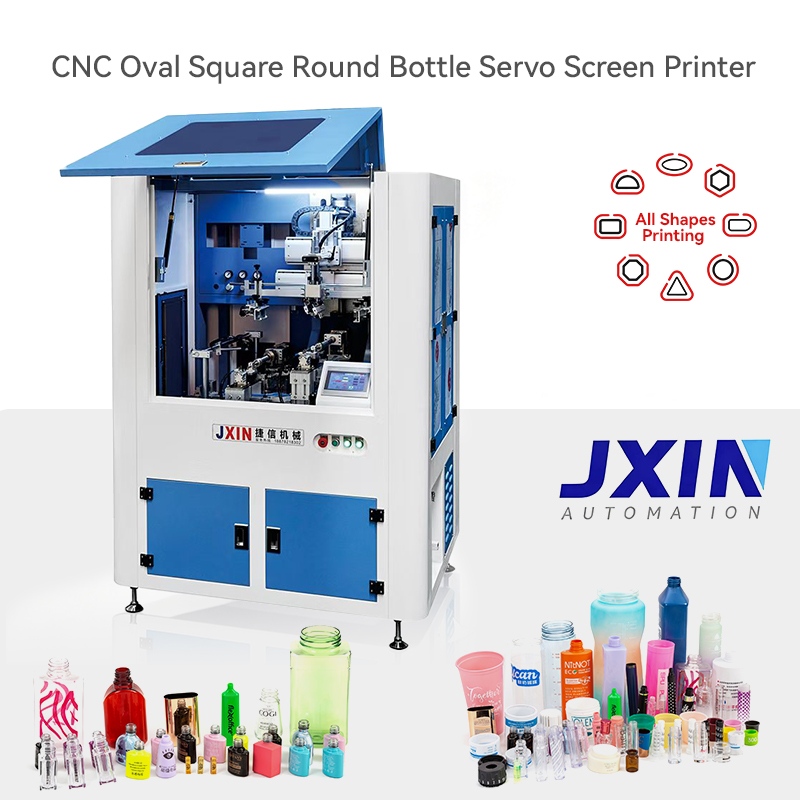

Full Automatic Servo Screen Printing Machine CNC-TK2

Full Automatic Servo Screen Printing Machine CNC-TK2

Product Item : CNC-TK2
Category： Auto Servo Screen Printer
Printing Speed : 1500-2500PCS//H
Printing Area: 90mm*210mm Power : 2kw
Volt: 220V Air Supply: 5—7BAR
Workstation: 2PCS
Product description：CNC printing machine, screen printing machine,bottle screen printing machine,Automatic screen printer,Automatic screen printer,bottle printing machine,bottle screen printer
Order online

Features

Stable and reliable performance, with speed up around 1500-2500 times per hour.

Automatic picking-up

Automatic Resigering by Fixture

Automatic screen printing

Automatic off-unloading to conveyor

Heat Conveyor Dryer/LED UV Dryer for ink Drying

Friendly to users

Suitable Products

Available for all shapes of plastic bottle,glass bottle, cream jar, and cups etc.

BOTTLE SHAPE	PRINTING AREA(MM)	RUNNING SPEED(IMPRESSIONS/H)
Round Bottle	210*90	2500PCS
Square Bottle	60*60	1500-2000
Oval Bottle	80*60	2000-2500
Hexagon Bottle	80*80	1000-1500

Machine brief introduction

This high-performance automatic printing and drying system delivers stable and reliable operation at a production speed of approximately 1,000–2,500 cycles per hour. The unit features a conveyor belt for automatic feeding, an automatic pick-up mechanism, and a servo system working with fixtures for precise registration. It integrates automatic screen printing, automatic off-unloading onto a conveyor, and a heat conveyor dryer for efficient ink drying. Designed with user-friendly operation in mind, the equipment is suitable for a range of products including plastic oval bottle, glass oval bottle,square bottle,cylindrical bottle and etc.
