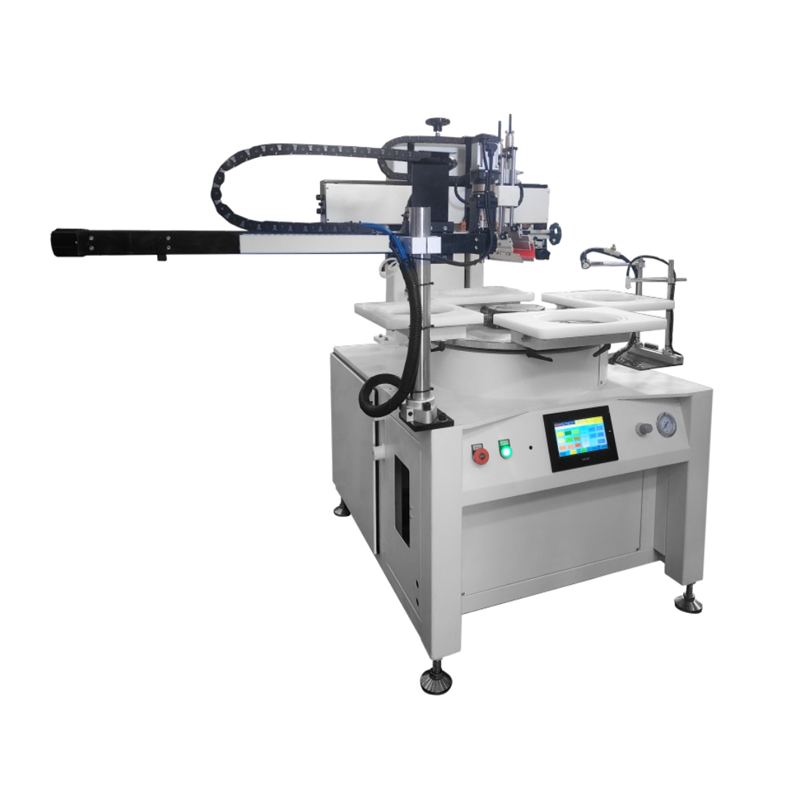

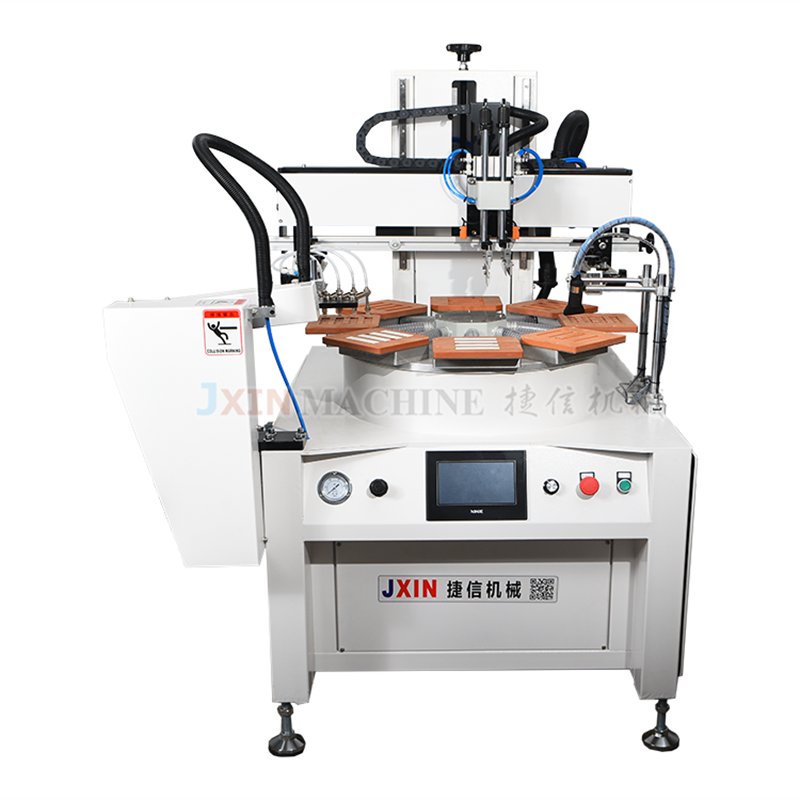

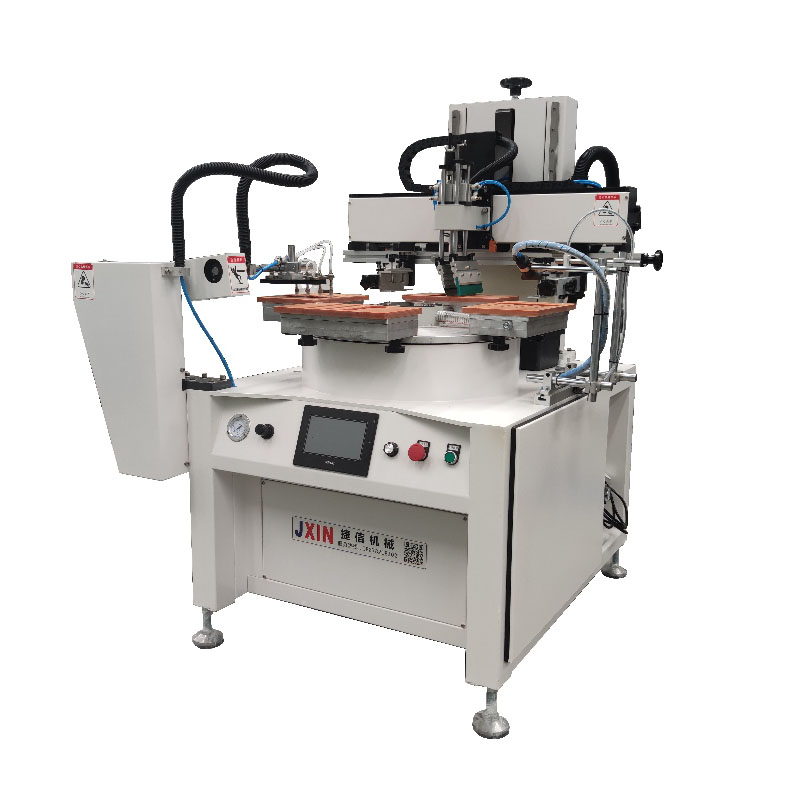

High Speed Automatic Flat Screen Printing Machine

High Speed Automatic Flat Screen Printing Machine

  • Product Item : JX-ZPT4
  • Category: Automatic Screen Printing Machine
  • Speed: 2500PCS/H
  • Printing Area: 200*300MM
  • Work table size :250*350MM Disk Dimension:600MM
  • Supply: 220V Air Pressure:5-7BAR
  • Product description:High Speed Semi-automatic Flat Screen Printing Machine with Rotary Table,High Speed Flat Automatic Screen Printing Press, High Speed Flat Automatic Screen Printer
  • Order online

Application Scope

Small objects with flat surface.

Description

The machine is special designed for printing lenses with high speed and automation.  Use DT precision cam divider to build disc conveying system,together the high precision servo motor to achieve printing automatically, reduce labor, improving efficiency,fast speed up to 2800pcs/hr.

Features
1. Fixture positioning with vacuum inspiration device ensure precision fixed position.

2.Sensor inspection device to ensure printing with materials,"No Material,NO Print",make the printing process more reasonable.

3. Taiwan motor driven conveyor station with high printing speed.

4. High precision cam indexer driving the conveyor, more smooth and accurate location.

5. PLC with Human-machine touch screen, programmable printing process.

6. The fixture on the work table is easy to adjust.

7. Manual feeding, the speed can be adjusted to matched with the feeding speed.

8. Auto unloading system by manipulator or robot arm.
