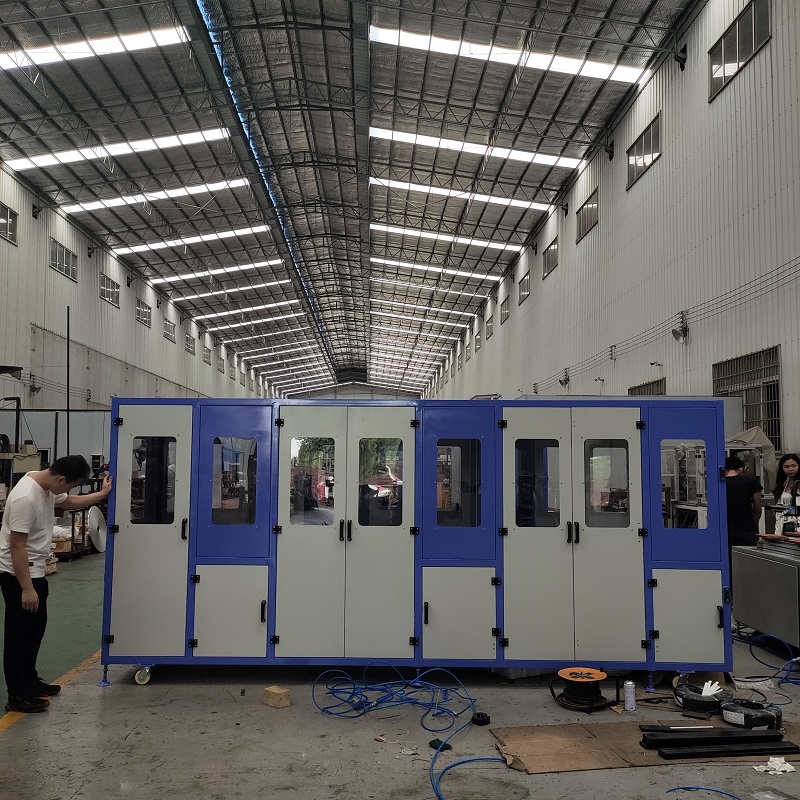

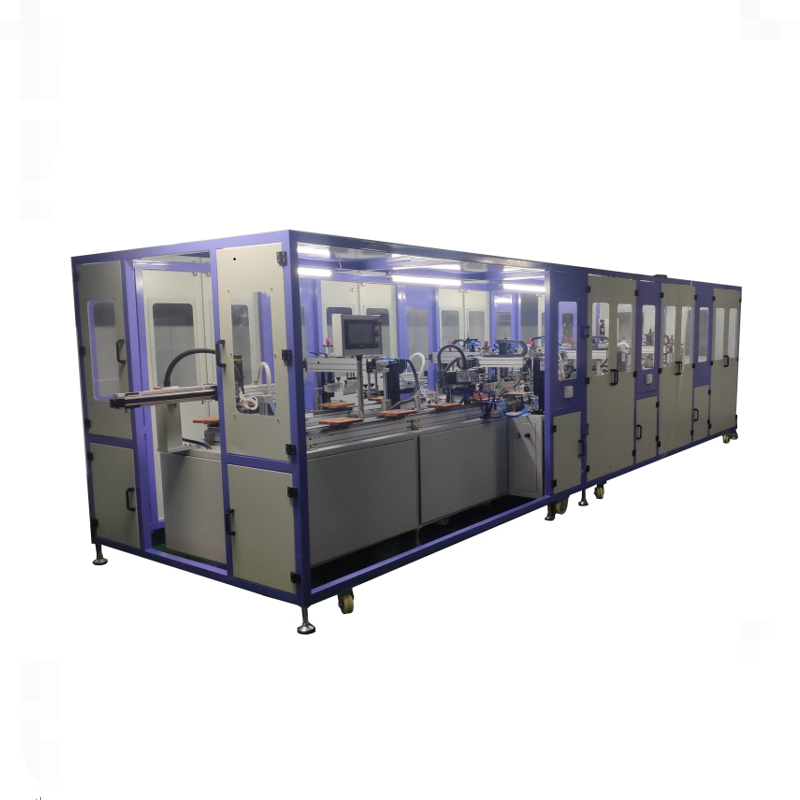

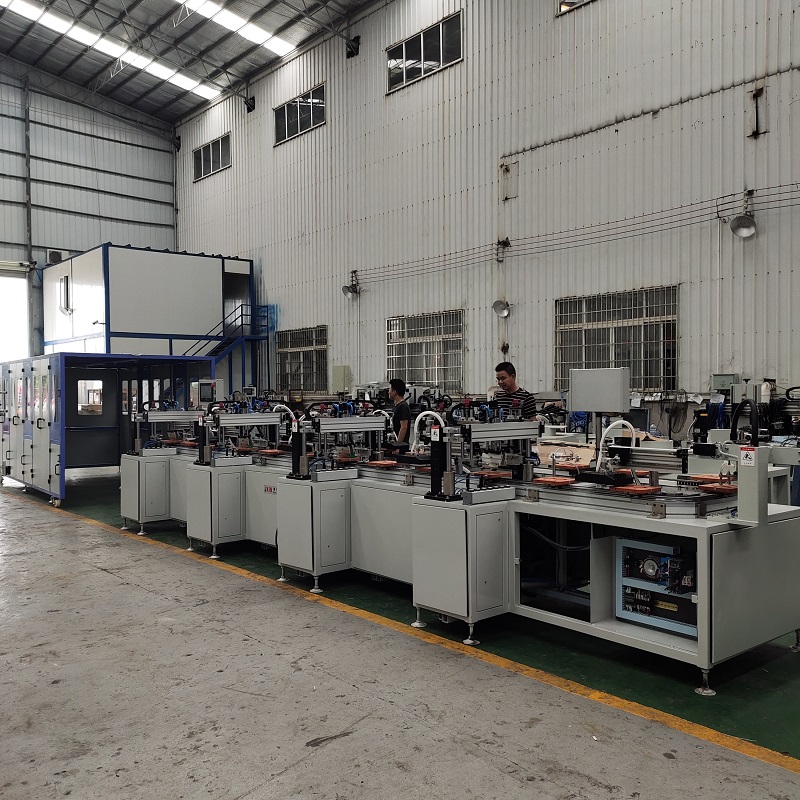

7-Color Automatic Flat Screen Printing Machine
- Model JX-AUTO7
- Category Flat Screen Printer
- Printing Itinerary: 300*400MM
- Print Speed: 500-800 times/hour
- Power : 220v 1KW
- Barometric Supply : 5—7BAR
Feature
7 color/multicolor screen printing simultaneous ,high output.
Application Scope
Cosmetic case lid, stationery box, lens and other plain objects .
Machine brief introduction

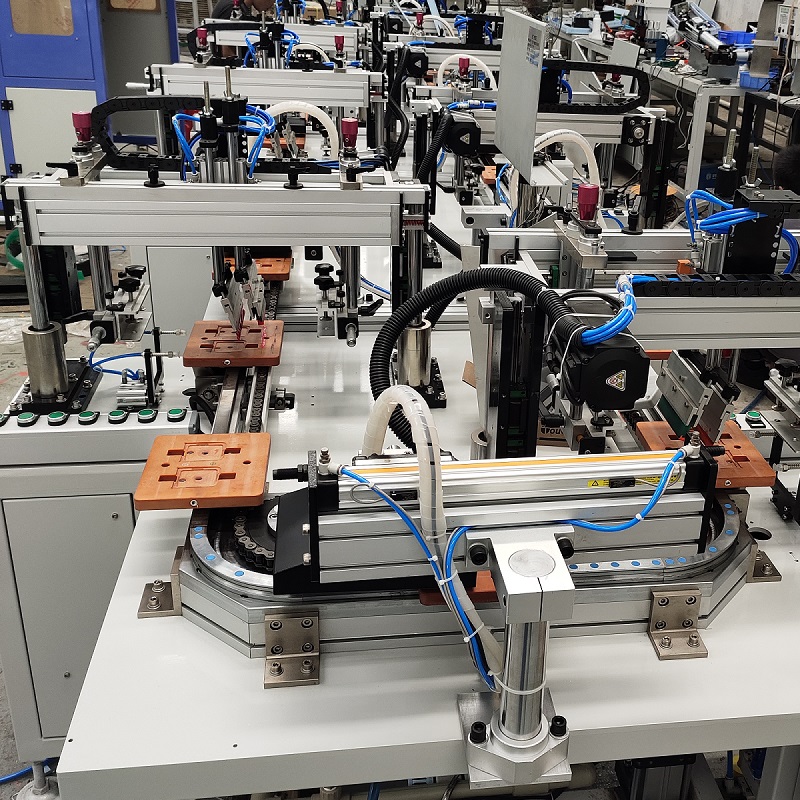

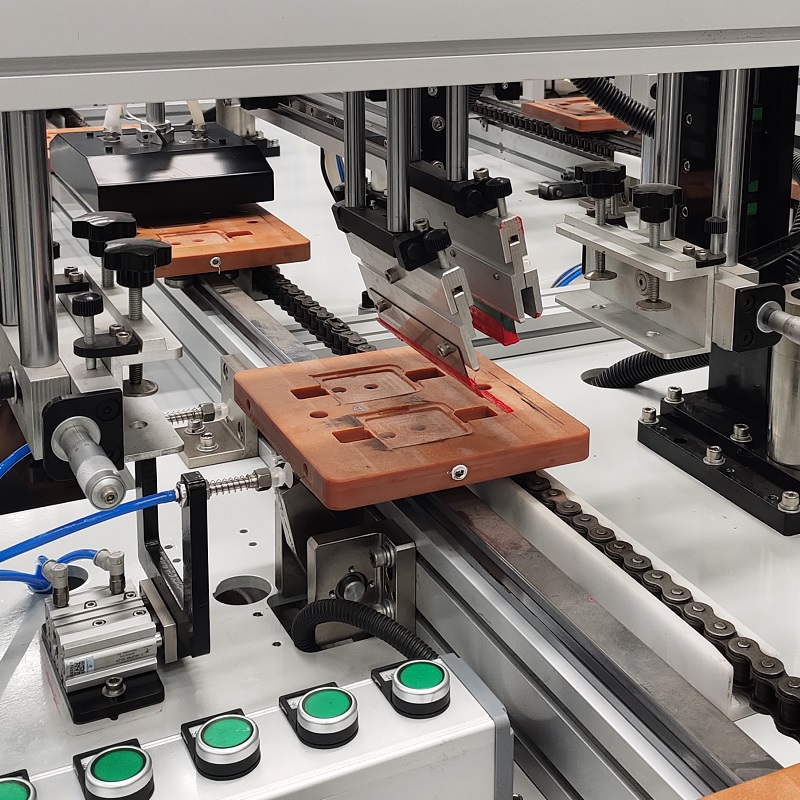

The transmission system is constructed by oval conveyor belt , 36 work stations ,7 groups of uv instant light for curing. Can print mulitcolor at the same time . It adopts sevor motor for multi-point positions,elliptical precision rotary table,with overprint accuracy less than ±0.05mm,feeding by operator ,automatic dust removal,automatic screen prin,with production efficiency up to 800 times per hour. It greatly improve the production capacity and surely be the best choice for mass multicolor printing.
