  • High Precision Servo Flat Screen Printing Machine

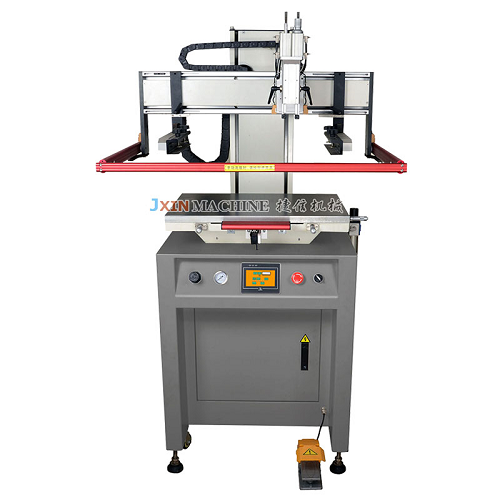

High Precision Servo Flat Screen Printing Machine

High Precision Servo Flat Screen Printing Machine

  • Product Item : JX-3040SF
  • Category: Automatic Screen Printing Machine
  • Printing speed: 1300 times/hour
  • Printing area: 300*400mm Worktable :400*500mm
  • Printing color: 1 color Power : 220V Barometric Supply: 5—7BAR
  • Substrate thickness range: 1mm~50 (mm) Dimensions: 1200*1150*1450 (mm) Weight: 215kG
  • Product description:A High-precision Automatic Flat Screen Printer specially designed for mobile phone touch screens and mobile phone covers.
  • Order online

Features

High precision and fast printing,easy operation.

Machine brief introduction

A high-precision flat screen printer specially designed for mobile phone touch screens and mobile phone covers. It has high precision, stable performance and good printing quality. It is the preferred model for the lens industry.

Technical Parameter

1. Use touch screen + PLC to compile the action program


2. Using Japan and Taiwan pneumatic components.

3. Printing speed: 1300 times/hour

4. Double-column lifting structure, high precision and stable operation

5. Squeegee constant pressure device to ensure stable pressure during printing

6.The angle of the squeegee scraper/returning ink knife can be adjusted

7. Printing table specifications: 400*500MM

8. Printing area: 300*450MM

9. Station: 1PCS

10. Power supply: 220V/750W

11. High-precision mirco adjustment worktable with self-locking device, the adjustment accuracy can reach 0.01MM

12. Japan Servo driven controls up and down, left and right movements, with high precision and stable operation

13. Operation mode: automatic, semi-automatic, manual

14. Maximum screen frame size: 350*600 (mm)
