What Is Engine Gasket Screen Printing?

Engine gasket screen printing is a specialized manufacturing process that uses screen printing technology to apply elastomer sealing compounds—such as silicone rubber or fluoroelastomer (FKM)—onto specific areas of engine gaskets.

In simple terms, an engine gasket is a sealing component installed between mating surfaces of engine parts to prevent the leakage of gases, oil, coolant, and other fluids. Screen printing is used to accurately deposit sealing beads on critical sealing areas of the gasket surface. These printed beads compensate for surface irregularities and significantly improve sealing performance.

Why Is Screen Printing Used for Engine Gaskets?

1. Improved Sealing Performance

Printed sealing beads fill microscopic imperfections on flange surfaces, allowing the gasket to achieve reliable sealing even when surface flatness or roughness is not ideal. This greatly enhances the engine's sealing reliability and durability.

2. High-Precision Coating Control

Compared with manual coating methods, screen printing provides exceptional control over the thickness, position, and geometry of the sealing compound.

Manufacturers can print variable-height or tapered sealing beads to accommodate different clamping forces across the gasket, ensuring optimal sealing performance in every critical area.

3. Consistent Quality for Mass Production

Automotive manufacturers require millions of gaskets with identical sealing performance. Automatic screen printing machines ensure every gasket receives a highly consistent coating, improving production efficiency while minimizing defects caused by manual operations.

---

Typical Applications of Engine Gasket Screen Printing

Cylinder Head Gaskets

Silicone rubber or fluoroelastomer sealing beads are printed around combustion chambers, oil passages, and coolant passages to provide reliable sealing under extreme engine operating conditions.

Composite Gaskets

For composite gaskets, screen printing is used to apply specially designed elastomer patterns onto both sides of a metal core plate. This structure combines the strength of metal with the flexibility and sealing performance of rubber.

By adjusting the printed mesh pattern, manufacturers can optimize deformation characteristics in different gasket areas to meet specific sealing requirements.

---

How to Choose the Right Screen Printing Machine for Engine Gasket Manufacturing

Engine gasket printing requires much higher precision than conventional screen printing applications. When selecting an automatic screen printing machine, manufacturers should consider the following factors.

1. Printing Accuracy and Product Flexibility

Printing accuracy is the most critical factor.

Sealing beads must be printed precisely in their designated positions. Even slight registration errors can result in poor sealing performance, product rejection, or engine leakage.

Since engine gaskets are available in various sizes and complex shapes, the machine should be capable of handling different product dimensions while allowing fast and convenient tooling changeovers.

2. Industry Experience and Technical Expertise

Engine gasket printing is a highly specialized industrial application. Equipment suppliers should have extensive knowledge of sealing materials, printing processes, and gasket manufacturing technologies.

When evaluating a supplier, consider the following:

• Proven experience in engine gasket printing
• Successful customer references
• Ability to develop customized automation solutions
• Long-term cooperation with major gasket manufacturers
• Positive customer feedback and industry reputation

Choosing an experienced manufacturer significantly reduces project risks and shortens production startup time.

3. Delivery Time and After-Sales Support

Production downtime is extremely costly in the automotive industry.

Before purchasing equipment, manufacturers should evaluate:

• Equipment lead time
• Installation schedule
• Spare parts availability
• Technical support response time
• Remote troubleshooting capabilities

Professional equipment manufacturers typically provide rapid delivery and prompt after-sales support, with technical assistance available within 24 hours whenever possible.

4. Total Cost of Ownership

Fully automatic screen printing machines require a higher initial investment and professional maintenance.

However, for high-volume engine gasket production, the long-term benefits far outweigh the upfront costs, including:

• Higher production efficiency
• Improved product consistency
• Reduced labor costs
• Lower rejection rates
• Stable production quality
• Faster return on investment (ROI)

For manufacturers producing large quantities of engine gaskets, automation is often the most cost-effective solution over the equipment's lifecycle.

---

Why Choose JXIN for Engine Gasket Screen Printing Solutions?

Since 2014, JXIN Machinery has been dedicated to the research, development, and manufacturing of automatic screen printing machines for the engine gasket industry.

Over the past decade, we have established long-term partnerships with leading gasket manufacturers both in China and overseas. In the Chinese market, JXIN equipment has achieved an estimated 95% market share in the engine gasket screen printing sector, making us one of the industry's most experienced and trusted suppliers.

Our expertise includes:

• More than 10 years of specialization in engine gasket printing automation
• Extensive experience with silicone and fluoroelastomer sealing applications
• Custom-designed solutions for different gasket sizes and configurations
• High-precision servo-driven printing systems
• Proven production reliability for high-volume automotive manufacturing

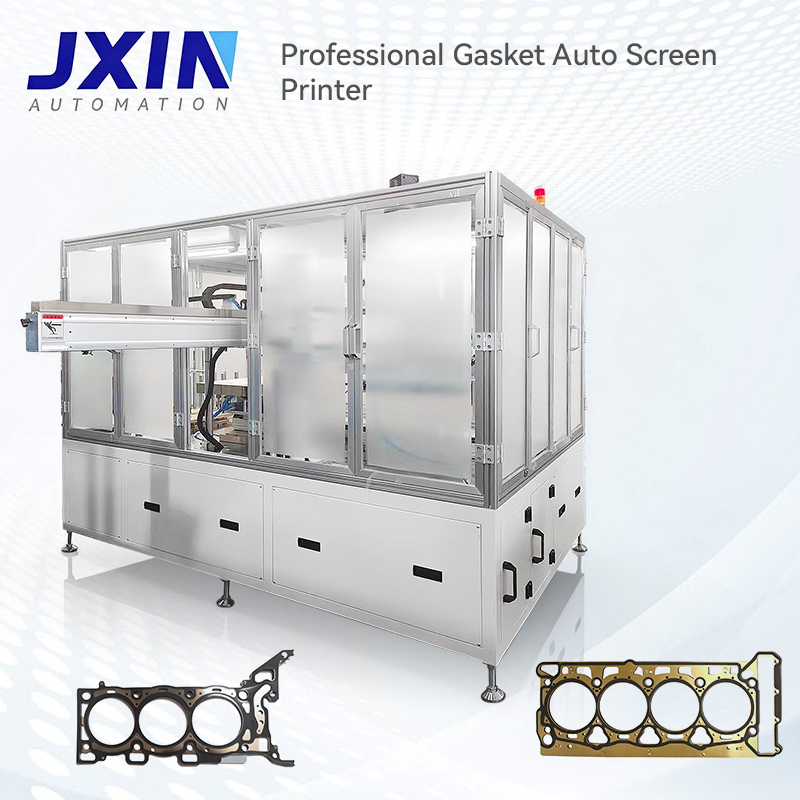

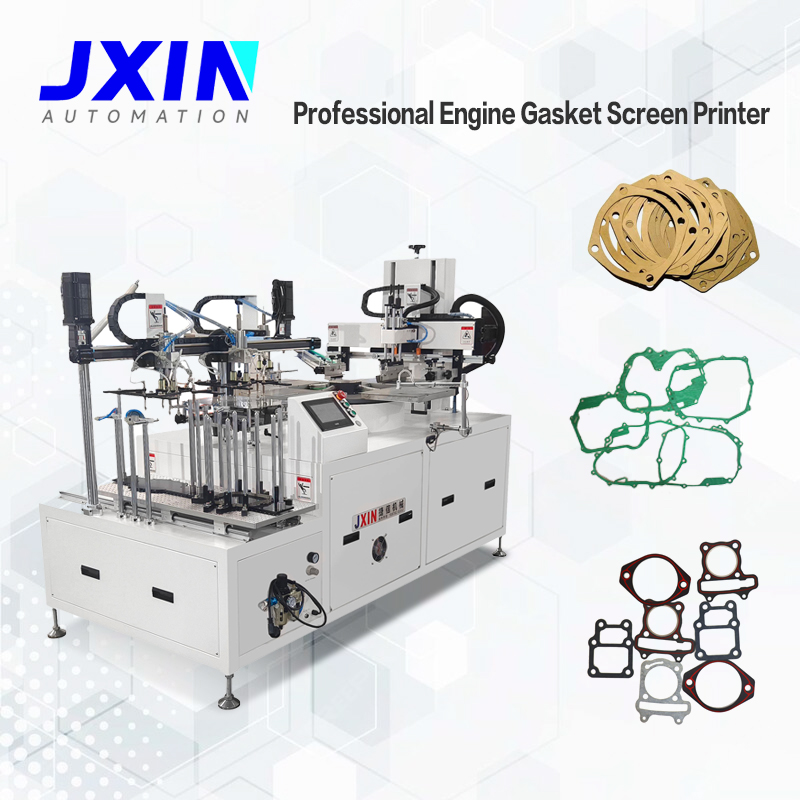

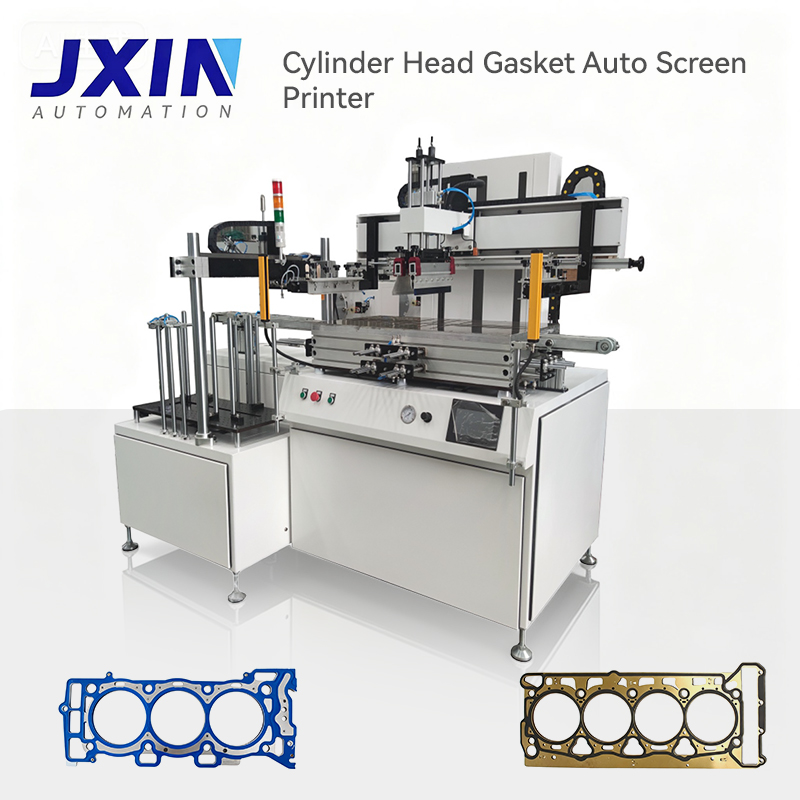

Below are three of our most recommended automatic engine gasket screen printing machines.

If you are looking for a reliable and high-precision engine gasket printing solution, feel free to contact the JXIN team. We will be happy to recommend the most suitable machine for your production requirements.
